Hospital – Environmental Controls Layout

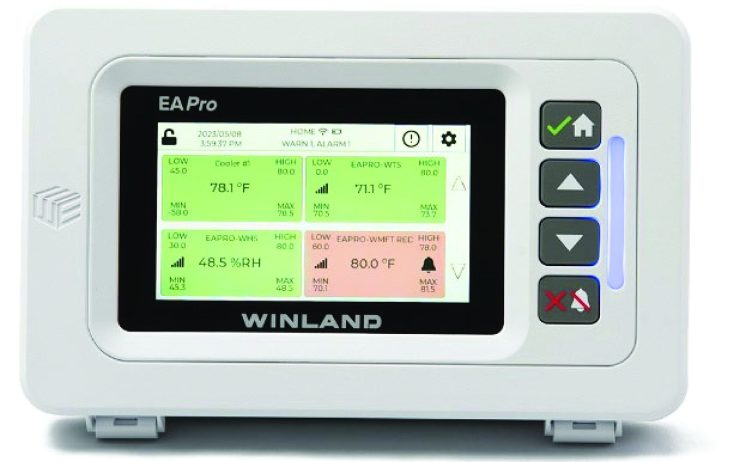

This layout example shows many applications that could be monitored individually. The Winland EAPro console was designed to monitor the entire layout using one console with hardwired and wireless sensors. The console provides electronic data logging reducing risk of employee error.

Key points:

• Connect up to 12 sensors via the Winland EAPro (up to 8 wireless, up to 4 hardwired)
• The TEMP-L-S stainless steel sensor is used in most cooler/freezer applications
• The TEMP-L-W waterproof sensor can be immersed, i.e., heavily washed areas etc.
• The TEMP-G-B is our 6oz bottle of Glycerin with a grommet top
• Wireless sensor transmission range is 45’ to 100’ indoor (results may vary)
• Wireless sensors cannot be placed in coolers/freezers (use a hardwired sensor connected to an external EAPro-WMFT sensor, see Zone 8 example)

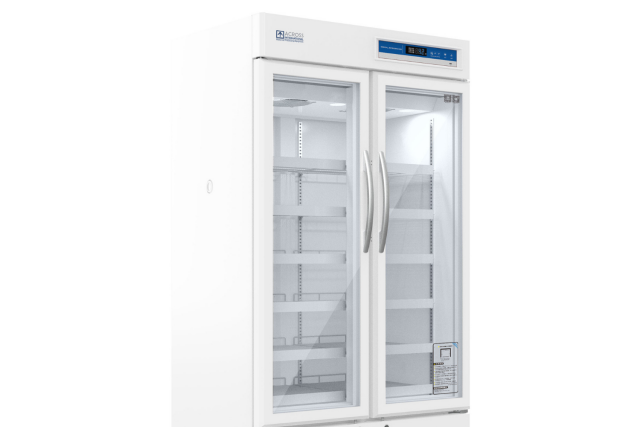

Cooler/Freezer Monitoring
Coolers/freezers can be monitored using hardwire sensors or wireless sensors.
Wireless monitoring requires the EA-WMFS with a sensor.
Hardwired Installation:
Select blue sensor TEMP-L-S or TEMP-L-W

Wireless Connections
Applications which use an EA-WMFS wireless sensor require the connection of a sensor for the specific condition to be monitored.

W-S-S Supervised Water Sensor
Supervised sensors will alarm if wire is severed as well as when water is detected

Data Logging
INSIGHT* maintains device and sensor log data online for 18 months. Beyond 18 months and up to 36 months, log data can be obtained by emailing – insightsupport@winland.com. Windfall Consulting can help with INSIGHT setup.

*Requires a fee-based subscription. Locally, 10,000 data points per sensor are transferable to a USB memory stick

Console to Panel
Connection Eight of the twelve available sensors can be connected via output relay to an alarm panel. All EnviroAlert consoles have an auxiliary output relay to accommodate remote buzzers and strobes (or as an optional single output to the alarm panel).
